Soil Installation
Picture Part name Part info
Spring hanger

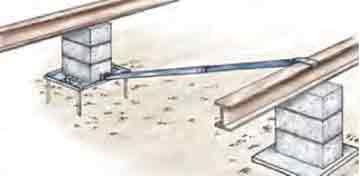

Lateral System

Components:

  • Galvanized 20" steel pier pad
  • Galvanized 60" adj lateral brace tube w/ hardware
Description Part #
Glav steel pier pad w/16” pins 483521
Galv 60” adj lateral brace tube w/ hardware 483532N
Galv 72” adj lateral brace tube w/ hardware 483537
Steel cast equalizer

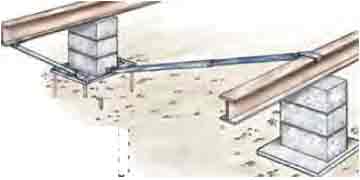

Longitudinal & Lateral System

Components:

  • Galvanized 20" steel pier pad
  • Beam clip hardware
  • Galvanized 60" adj lateral brace tube w/ hardware
Description Part #
Glav steel pier pad w/16” pins 483521
Galv 60” adj lateral brace tube w/ hardware 483532N
Galv 39” Longitudinal brace tube for piers up to 24” 483539
Galv 44” Longitudinal brace tube for piers up to 32” 483544
Galv 53” Longitudinal brace tube for piers up to 40” 483553
Galv 65” Longitudinal brace tube for piers up to 48” 483565

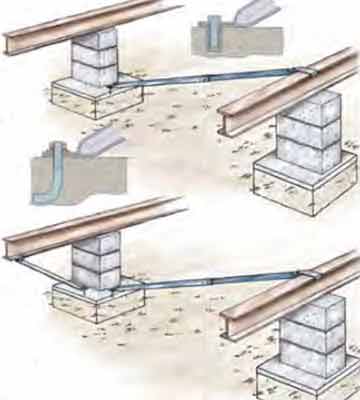

Concrete Installation

Lateral System

Components:

  • Galvanized concrete anchor flange w/ hardware
  • Galvanized 60" adj lateral brace tube w/ hardware
Description Part #

 Galv 60” adj lateral brace tube w/ hardware

483632

Galv 72” adj lateral brace tube w/ hardware

483637

J-Hook lbs wet set

483636

Longitudinal & Lateral System

Components:

  • Galvanized concrete anchor flange w/ hardware
  • Beam clip hardware
  • Galvanized 60" adj lateral brace tube w/ hardware
Description Part #
Galv 39” Longitudinal flex tube for piers up to 24” 483639
Galv 44” Longitudinal flex tube for piers up to 32” 483644
Galv 53” Longitudinal flex tube for piers up to 40” 483653
Galv 65” Longitudinal flex tube for piers up to 48” 483665





*More products Available-Contact Us for details.
