Ground Foundation System |
Picture |
Part name |
Part info |
|

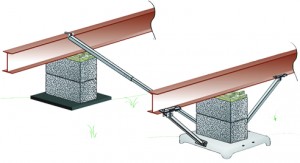

Xi2 Ground system
Includes:
|
Description |
Part # |
Ground system |
4859306 |
|
|
Longitudinal Hardware Kit
Includes:
- I-beam brackets
- U-bolts
- Nuts
- Bolts
- Washers
|
Description |
Part # |
I Strut kit |
4859031 |
2 Strut kit |
4859331 |
|
|
Longitudinal Struts |
Description |
Part # |
30" Strut |
4859330-30 |
39" Strut |
4859330-39 |
44" Strut |
4859330-44 |
53" Strut |
4859330-53 |
65" Strut |
4859330-65 |
|
Xi2 Concrete System |
|

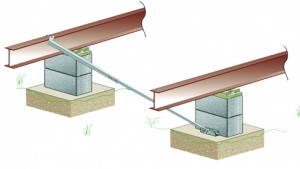

Xi2 Concrete System
Includes:
|
Description |
Part # |
'Dry Set' system |
4859307 |
'Wet Set' system |
4859328 |
|
|
Longitudinal Hardware Kit
Includes:
- I-beam brackets
- U-bolts
- Nuts
- Bolts
- Washers
|
Description |
Part # |
I Strut kit |
4859263 |
2 Strut kit |
4859023 |
|
|
Longitudinal Struts |
Description |
Part # |
30" Strut |
4859016 |
39" Strut |
4859012 |
44" Strut |
4859013 |
53" Strut |
4859014 |
65" Strut |
4859015 |
|
Xi Steel Pier System |
|
Xi2 Steel Pier with Longitudinal System
Includes:
- Steel Pier/Longitudinal strut
- Foundation base pad
|
Description |
Part # |
Pier for 12" height |
4859321 |
Pier for 25.5" height |
4859314 |
Pier for 36" height |
4859317 |
|
Lateral Stabilization Strut Kit
Includes:
|
Description |
Part # |
5' Strut kit |
4859345 |
6' Strut kit |
4859348 |
|
|
