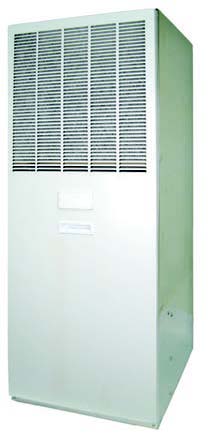

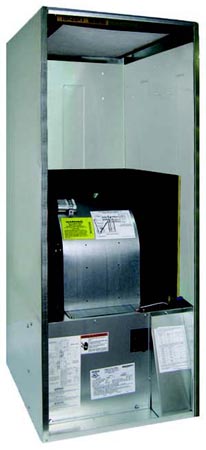

EB Series (Electric) Furnace
- Heat Pump and A/C Ready
- Built-In Insulated Coil Cabinet
- 4Ton A/C-3 1/2Ton heat pump blower capacity
- Full sequenced heat to protect home electronics
- Upflow/Downflow Convertible
- Top/Front Return Air Convertible
- Electric furnace-Downflow-A/C, Heat pump ready-UL/CUL Approved
- Zero clearance installation *all units 51.5˝x 19.5˝x 24˝(HxWxD).
- Available in a wide range of heat capacities (10KW-23KW) to match needs of any home
- Heating package includes designed, long lasting nickel/chrome heat elements
- Accessory blower kit available-larger A/C & HP applications
- As defined by the U.S. Department of Energy, these furnaces are 100% efficient when used in specified applications
- Easily converted to upflow applications
| Item Description |
Output BTU | Part Number |
| 10kW Electric Furnace | 34,000 at 240 volts | EB10D |
| 12kW Electric Furnace | 39,000 at 240 volts | EB12D |
| 15kW Electric Furnace | 51,000 at 240 volts | EB15D |
| 17kW Electric Furnace | 55,000 at 240 volts |
EB17D |
| 20kW Electric Furnace | 67,000 at 240 volts | EB20D |
| 23kW Electric Furnace | 77,000 at 240 volts | EB23D |
*More products Available-Contact Us for details.
