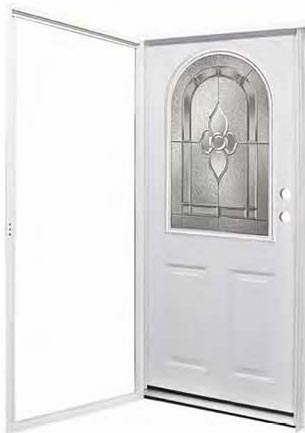

Series 7660
Sunburst Lite
House Type Steel Door
A totally efficient thermal entrance system. Completely pre-hung and ready to install, the 7660 includes a 25 gauge steel inner door and an energy efficient storm door.
Standard Features
• 25 gauge steel door core.
• Stainless steel lock system.
• Core is edged bored & capped for easy
addition of dead bolt.
• Prefinished white jamb system.
• Thermally broken threshold.
• Metal blind stop with residential style.
Q-Lon weatherstrip located on three sides.
• Four leaf sill sweep.
• Lockside metal blind stop & integral
sealing system.
• Heavy duty aluminum framed storm
door with stainless steel bushings in
the hinges with built-in drip cap.
• Knocker/viewer standard (except oval).
• Manufactured to comply with: HUD Std. 3280-405, AAMA 1702.2.95 and AAMA 1702.2.95
Kinro 7660 *Sunburst House Type Steel Door |
||||
|---|---|---|---|---|
| Size W x H | Opening Direction |
Storm Type | Jam Size | Part # |
| 34" x 76" | LH | Conventional-White | 4" | 69K23476L5WC0 |
| 6.5" | 69K23476L5WC2 | |||
| RH | Conventional-White | 4" | 69K23476R5WC0 | |
| 6.5" | 69K23476R5WC2 | |||
| 34" x 80" | LH | Conventional-White | 4" | 69K23480L5WC0 |
| 6.5" | 69K23480L5WC2 | |||
| RH | Conventional-White | 4" | 69K23480R5WC0 | |
| 6.5" | 69K23480R5WC2 | |||
| Item | Part # |
| KINRO Touch-up White paint | 69350001 |
