Series 7660

Cottage Window

House Type Steel Door

Kinro7600. 6panel door

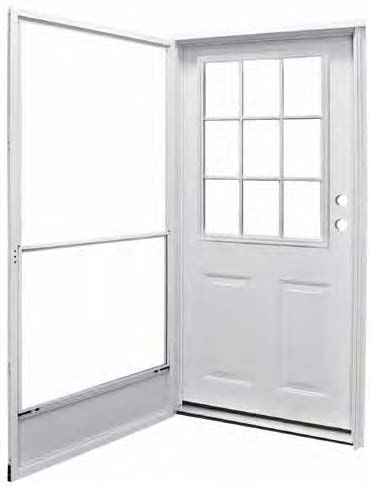

A totally efficient thermal entrance system. Completely pre-hung and ready to install, the 7660 includes a 25 gauge steel inner door and an energy efficient storm door.

Standard Features
• 25 gauge steel door core.
• Stainless steel lock system.
• Core is edged bored & capped for easy addition of dead bolt.
• Prefinished white jamb system.
• Thermally broken threshold.
• Metal blind stop with residential style. Q-Lon weatherstrip located on three sides.
• Four leaf sill sweep.
• Lockside metal blind stop & integral sealing system.
• Heavy duty aluminum framed storm door with stainless steel bushings in the hinges with built-in drip cap.
• Knocker/viewer standard (except oval).
• Manufactured to comply with: HUD Std. 3280-405, AAMA 1702.2.95 and AAMA 1702.2.95

Features
door frame corner door sweep blind stop 9 pane window
Door Frame Corner
Sweep Blind Stop 9 Pane Cottage Window

Kinro 7660 *Cottage House Type Steel Door

Size W x H Opening Direction
Storm Type Jam Size Part #
34" x 76" LH Conventional-White 4" 69K23476L4WC0
6.5" 69K23476L4WC2
RH Conventional-White 4" 69K23476R4WC0
6.5" 69K23476R4WC2
34" x 80" LH Conventional-White 4" 69K23480L4WC0
6.5" 69K23480L4WC2
RH Conventional-White 4" 69K23480R4WC0
6.5" 69K23480R4WC2
kinroPaint
Item Part #
KINRO Touch-up White paint 69350001
*More Sizes and types Available-Contact Us for details.
