Series 5210

Inswing Combination Door

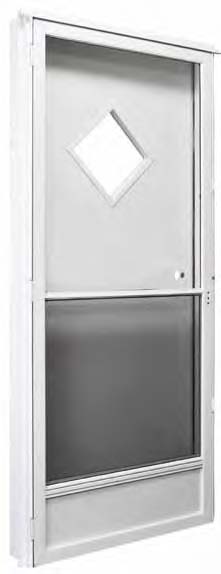

5210 Inswing door

An efficient thermal entrance system for manufactured housing. Completely prehung and ready to install, the 5210 includes a tough fiberglass-clad inner door and an energy efficient storm door.

Standard Features
• Galvanized steel frame which is precambered on the lock side to promote a tight seal.
• Three heavy duty hinges join the core to the frame.
• Heavy, damage resistant panels are securely bonded to the core.
• Effective insulated 2 pound density foam core.
• 5 pound density foam lock block wont distort or deteriorate.
• Thermally broken threshold.
• Core is edge bored and capped for easy addition of dead bolt
• Residential style butt hinges used to mount inswinging core.
• Lockside metal blind stop and integral sealing system.
• Prefinished jamb system.
• Double leaf sill sweep.
• Stainless steel lock system with adjustable strike plate.
• Self-storing heavy duty aluminum framed storm door with stainless steel bushings in the hinges and built-in drip cap.
• Manufactured to comply with: HUD Std. 3280-405, AAMA 1702.2.95 and AAMA 1702.2.95

Features
  door sweep   blind stop
  Sweep   Blind Stop

Series 5210 *Inswing Combination Door

Size
W x H
Opening
Direction
Window
type
Storm
Color
Storm
Type
Jamb
Size
Part
Number
32" x 76"



LH 10 x 10 mill conventional 4" 69K73276L1MC0
white conventional 4" 69K73276L1WC0
RH 10 x 10 mill conventional 4" 69K73276R1MC0
white conventional 4" 69K73276R1WC0
34" x 76"
LH 10 x 10 mill conventional 4" 69K73476L1MC0
white conventional 4" 69K73476L1WC0
white conventional 6.5" 69K73476L4WC2
cottage white conventional 6.5" 69K73476L4WC2
RH 10 x 10 mill conventional 4" 69K73476R1MC0
white conventional 4" 69K73476R1WC2
white conventional 6.5" 69K23476R0WF0
cottage white conventional 6.5" 69K73476R4WC2
34" x 78"
LH 10 x 10 mill conventional 4" 69K73478L1MC0
white conventional 4" 69K73478L1WC0
cottage white conventional 6.5" 69K73478L4WC2
RH 10 x 10 mill conventional 4" 69K73478R1MC0
white conventional 4" 69K73478R1WC0
cottage white conventional 6.5" 69K73478R4WC2
34" x 80" LH 10 x 10 mill conventional 4" 69K73480L1MC0
white conventional 4" 69K73480L1WC0
cottage white conventional 6.5" 69K73480L4WC2
RH 10 x 10 mill conventional 4" 69K73480R1MC0
white conventional 4" 69K73480R1WC0
cottage white conventional 6.5" 69K73480R4WC2
36" x 76" LH 10 x 10 white conventional 4" 69K73676L1WC0
RH 10 x 10 white conventional 4" 69K73676R1WC0
36" x 80" LH 10 x 10 white conventional 4" 69K73680L1WC0
RH 10 x 10 white conventional 4" 69K73680R1WC0
38" x 76"
LH 10 x 10 white conventional 4" 69K73876L1WC0
RH 10 x 10 white conventional 4" 69K73876R1WC0
38" x 80"
LH 10 x 10 white conventional 4" 69K73880L1WC0
RH 10 x 10 white conventional 4" 69K73880R1WC0
kinroPaint
Item Part #
KINRO Touch-up White paint 69350001
*More Sizes and Types Avaliable-Contact Us for details.
